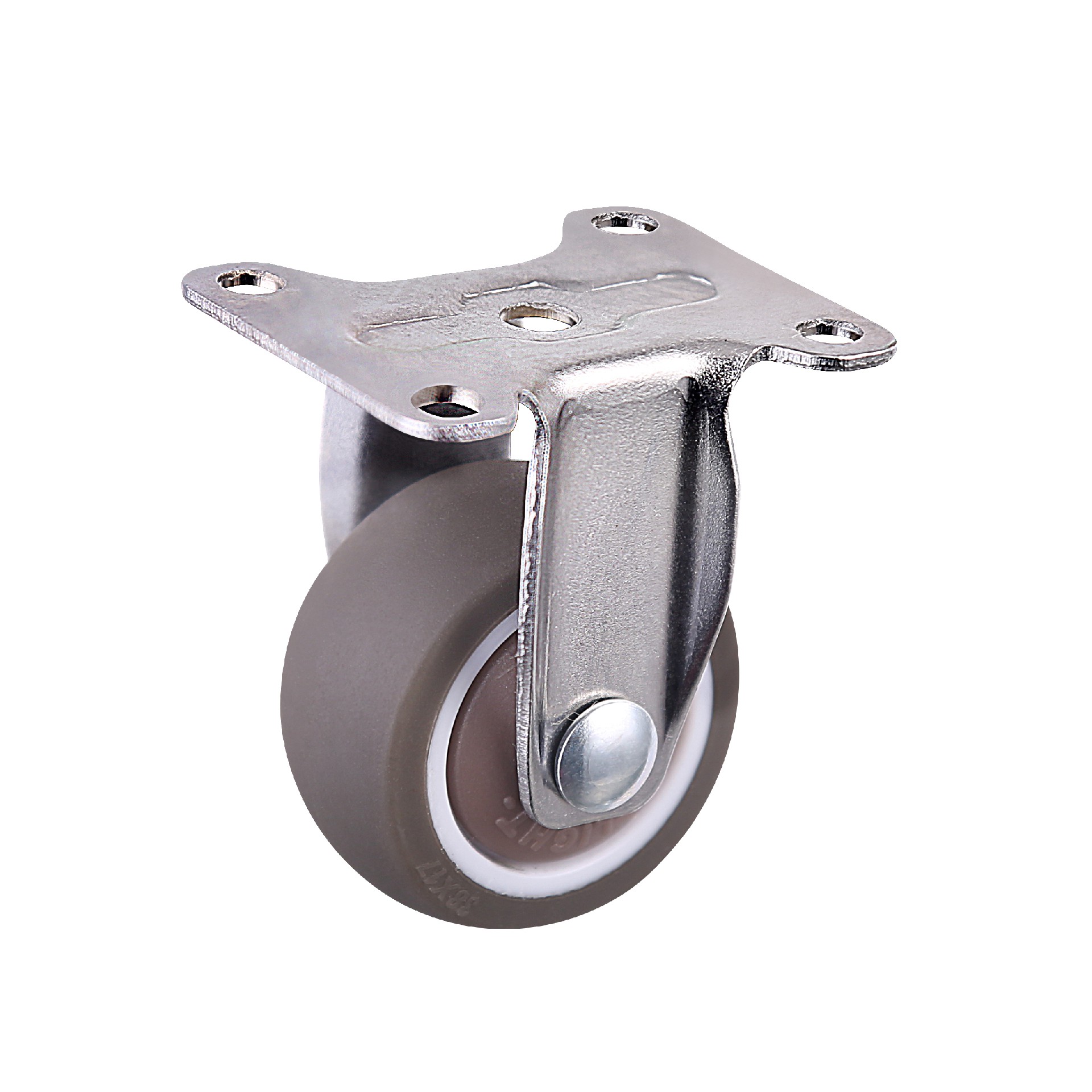

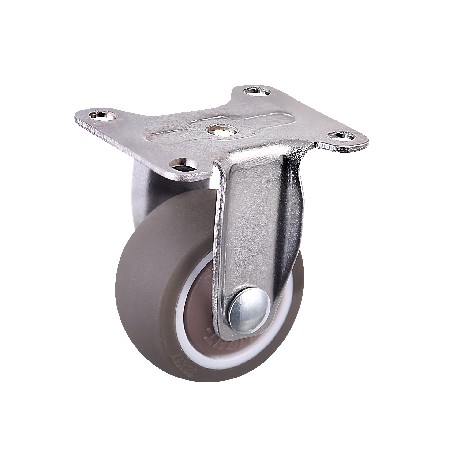

工业系列微轻型脚轮01 Series（系列）
2021-08-19 513

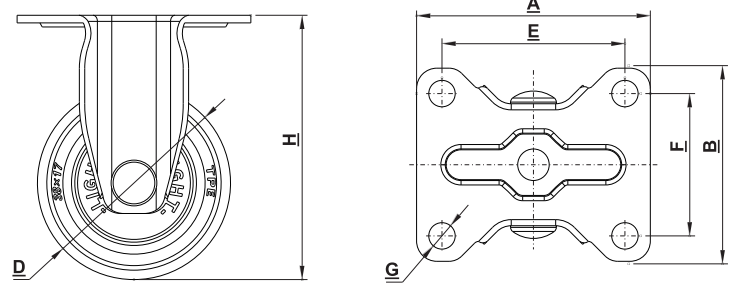

| 尺寸 | 安装方式 | 底板大小 | 安装孔距 | 安装孔 |
| Size | Fitting type | Plate size | Hole spacing | Hole diameter |
| 1" | 定向 | 39X33 38X30（可选） | 30X24 29X21（可选） | 4.2 |
| 1.25" | ||||
| 1.5" | 46X39 | 36X28 | 5.2 | |
| 2" |
Model and specification(型号技术参数)
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Wheel Width (mm) | Bearing |
| 产品 | 型号 | 轮径 | 承重 | 安装高度 | 轮宽 | 轮轴 |
镀锌架MPP轮 Galvanized/PP | 01-Z4-453B25 | 25 | 13 | 39 | 13 | 滑动轴 plain bearing |
| 01-Z4-453B32 | 32 | 18 | 45.5 | |||
| 01-Z4-453B38 | 38 | 23 | 53 | 17 | ||
| 01-Z4-453B50 | 50 | 25 | 65 | 18 | ||
镀锌架TPE轮 Galvanized/TPE | 01-Z4-033G25 | 25 | 12 | 39 | 13 | 滑动轴 plain bearing |
| 01-Z4-033G32 | 32 | 17 | 45.5 | |||
| 01-Z4-033G38 | 38 | 23 | 53 | 17 | ||
| 01-Z4-033G50 | 50 | 25 | 65 | 18 | ||
镀锌架TPU轮 Galvanized/TPU | 01-Z4-213B25 | 25 | 13 | 39 | 14 | 滑动轴 plain bearing |
| 01-Z4-213B32 | 32 | 18 | 45.5 | |||
| 01-Z4-211B38 | 38 | 25 | 53 | 18 | 单轴承 Single Bearing | |
| 01-Z4-211B50 | 50 | 28 | 65 | |||
滚铬架MPP轮 Chrome roll/PP | 01-C4-451Q25 | 25 | 13 | 39 | 13 | 单轴承 Single Bearing |
| 01-C4-451Q32 | 32 | 18 | 45.5 | |||
| 01-C4-451Q38 | 38 | 25 | 53 | 17 | ||
| 01-C4-451Q50 | 50 | 28 | 65 | 18 | ||
滚铬架TPE轮 Chrome roll/TPE | 01-C4-031K25 | 25 | 13 | 39 | 13 | 单轴承 Single Bearing |
| 01-C4-031K32 | 32 | 17 | 45.5 | |||
| 01-C4-031K38 | 38 | 23 | 53 | 17 | ||
| 01-C4-031K50 | 50 | 25 | 65 | 18 | ||
烤漆架TPE轮 Paint/TPE | 01-CU4-031X25 | 25 | 13 | 39 | 13 | 单轴承 Single Bearing |
| 01-CU4-031X32 | 32 | 17 | 45.5 | |||
| 01-CU4-031X38 | 38 | 23 | 53 | 17 | ||
| 01-CU14-031X50 | 50 | 25 | 65 | 18 |
