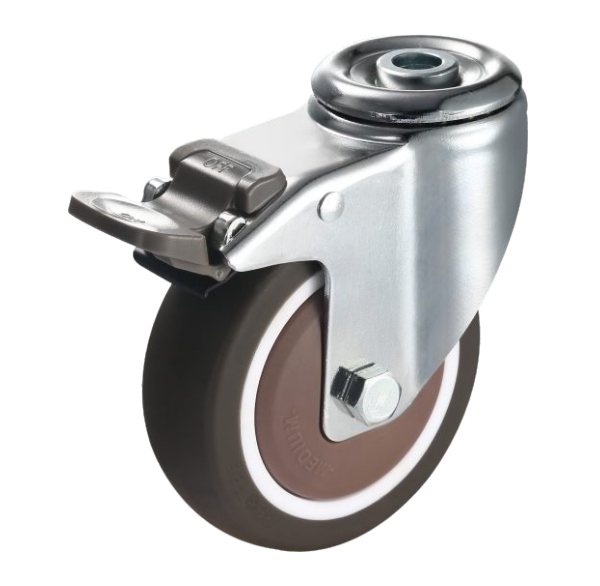

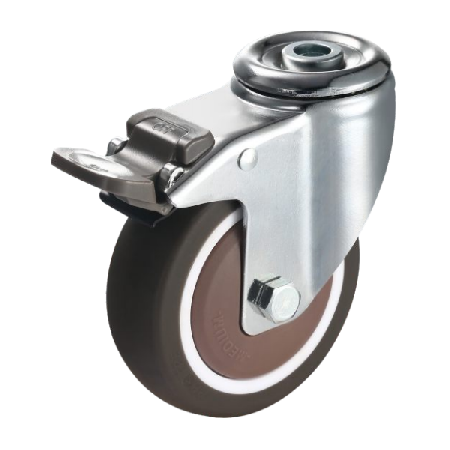

工业系列中型脚轮03 Series（系列）
2021-08-19 453
| 尺寸 | 安装方式 | 孔规格 |
| Size | Fitting type | Threadedstem size |
| 2.5" | 孔顶刹车 Bolt holeswivelbrake | 12.5 |
| 3" | ||
| 4" | ||
| 5" |
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Radius (mm) | Brake swivel Radius(mm) | Wheel Width (mm) | Bearing |
| 产品 | 型号 | 轮径 | 承重 | 安装高度 | 轮子转动半径 | 最大转动半径 | 轮宽 | 轮轴 |
亚光灰+GTPE-1 防缠盖 | 03-CU3D-031X63 | 单轴承 Single Bearing | ||||||
| 03-CU3D-031X75 | 75 | 85 | 102.5 | 70 | 90 | 32 | ||
| 03-CU3D-031X100 | 100 | 115 | 128 | 86 | 104 | |||
| 03-CU3D-031X125 | ||||||||
挂铬+KTPE-1 防缠绕 | 03-R3D-031K63 | 单轴承 Single Bearing | ||||||
| 03-R3D-031K75 | 75 | 85 | 102.5 | 70 | 90 | 32 | ||
| 03-R3D-031K100 | 100 | 115 | 128 | 86 | 104 | |||
| 03-R3D-031K125 | ||||||||
挂铬+EPU-2 | 03-R3D-222E63 | 双轴承 Double Bearing | ||||||
| 03-R3D-222E75 | 75 | 105 | 102.5 | 70 | 90 | 32 | ||
| 03-R3D-222E100 | 100 | 125 | 128 | 86 | 104 | |||
| 03-R3D-222E125 | ||||||||
挂铬+GPP-1 | 03-R3D-411G63 | 单轴承 Single Bearing | ||||||
| 03-R3D-411G75 | 75 | 105 | 102.5 | 70 | 90 | 32 | ||
| 03-R3D-411G100 | 100 | 125 | 128 | 86 | 104 | |||
| 03-R3D-411G125 | ||||||||
挂铬+WPA-2 | 03-R3D-432W63 | 双轴承 Double Bearing | ||||||
| 03-R3D-432W75 | 75 | 110 | 102.5 | 70 | 90 | 32 | ||
| 03-R3D-432W100 | 100 | 135 | 128 | 86 | 104 | |||
| 03-R3D-432W125 | ||||||||
锌+KTPE-1 防缠盖 | 03-Z3D-031K63 | 单轴承 Single Bearing | ||||||
| 03-Z3D-031K75 | 75 | 85 | 102.5 | 70 | 90 | 32 | ||
| 03-Z3D-031K100 | 100 | 115 | 128 | 86 | 104 | |||
| 03-Z3D-031K125 | ||||||||
锌+EPU-2 | 03-Z3D-222E63 | 双轴承 Double Bearing | ||||||
| 03-Z3D-222E75 | 75 | 105 | 102.5 | 70 | 90 | 32 | ||
| 03-Z3D-222E100 | 100 | 125 | 128 | 86 | 104 | |||
| 03-Z3D-222E125 | ||||||||
锌+GPP-1 防缠盖 | 03-Z3D-441G63 | 单轴承 Single Bearing | ||||||
| 03-Z3D-441G75 | 75 | 105 | 102.5 | 70 | 90 | 32 | ||
| 03-Z3D-441G100 | 100 | 125 | 128 | 86 | 104 | |||
| 03-Z3D-441G125 | ||||||||
锌+WPA-2 | 03-Z3D-432W63 | 双轴承 Double Bearing | ||||||
| 03-Z3D-432W75 | 75 | 110 | 102.5 | 70 | 90 | 32 | ||
| 03-Z3D-432W100 | 100 | 135 | 128 | 86 | 104 | |||
| 03-Z3D-432W125 |
