家具系列 70 Series （系列）
2021-08-19 519

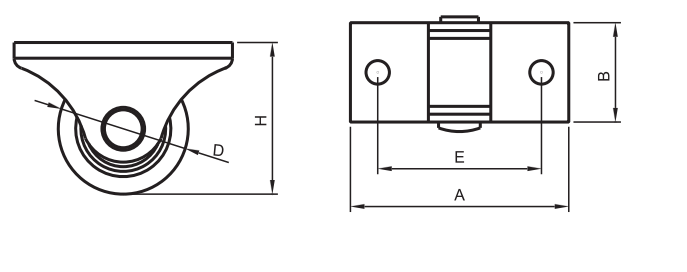

| 尺寸 | 安装方式 | 底板大小 | 安装孔距 | 安装孔 |
| Size | Fitting type | Plate size | Hole spacing | Hole diameter |
| 1" | 定向 directional | 42x19 | 31.5 | 4.5 |
| 1.25" | 51x19 | 40 | 5.2 | |
| 1.5" | 59x23.5 | 47 | 5.2 | |
| 2" | 71x23.5 | 58 | 6.3 |
产品 Product | 型号 Model | 轮径 Wheel Diameter(mm) | 承重 Load Capacity (KG) | 安装高度 Height (mm) | 轮宽 Wheel Width (mm) | 轮轴 Bearing |

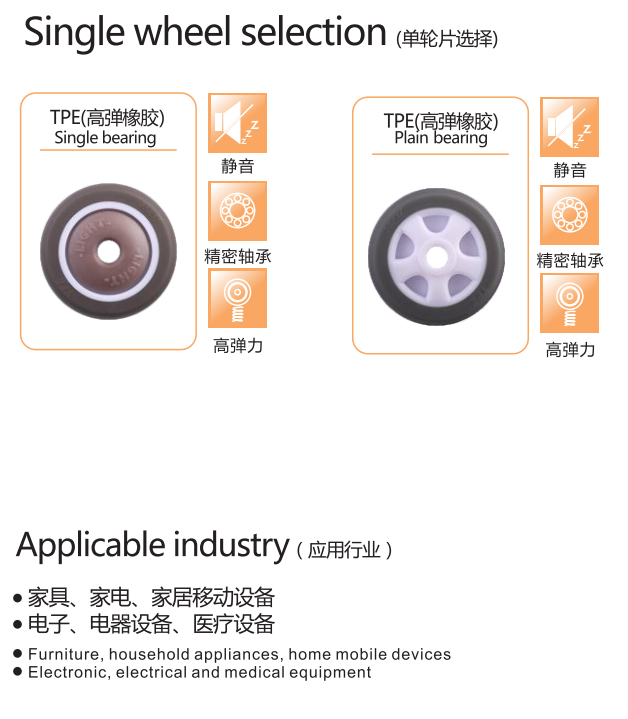

锌+GTPE | 70-Z4-033G25 | 25 | 12 | 29 | 13 | 滑动轴 Plain bearing |
| 70-Z4-033G32 | 32 | 15 | 35 | |||
| 70-Z4-033G38 | 38 | 22 | 42 | 17 | ||
| 70-Z4-033G50 | 50 | 25 | 55 | 18 | ||
锌+KTPE-1 | 70-Z4-031K25 | 25 | 13 | 29 | 13 | 单轴承 Single Bearing |
| 70-Z4-031K32 | 32 | 16 | 35 | |||
| 70-Z4-031K38 | 38 | 23 | 42 | 17 | ||
| 70-Z4-031K50 | 50 | 26 | 55 | 18 | ||

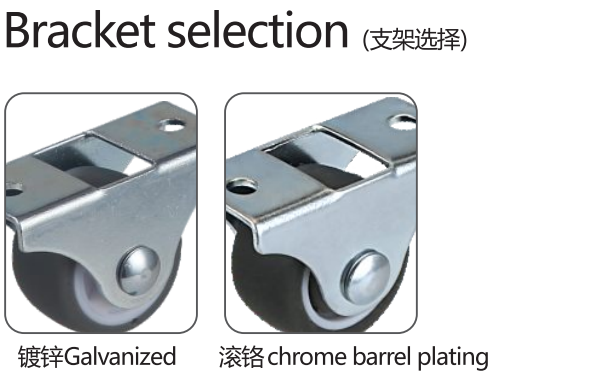

镀铬+GTPE | 70-C4-033G25 | 25 | 12 | 29 | 13 | 滑动轴 Plain bearing |
| 70-C4-033G32 | 32 | 15 | 35 | |||
| 70-C4-033G38 | 38 | 22 | 42 | 17 | ||
| 70-C4-033G50 | 50 | 25 | 55 | 18 | ||
镀铬+KTPE-1 | 70-C4-031K25 | 25 | 13 | 29 | 13 | 单轴承 Single Bearing |
| 70-C4-031K32 | 32 | 16 | 35 | |||
| 70-C4-031K38 | 38 | 23 | 42 | 17 | ||
| 70-C4-031K50 | 50 | 26 | 55 | 18 |
