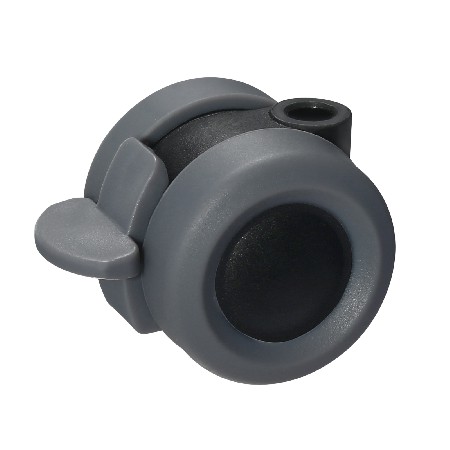

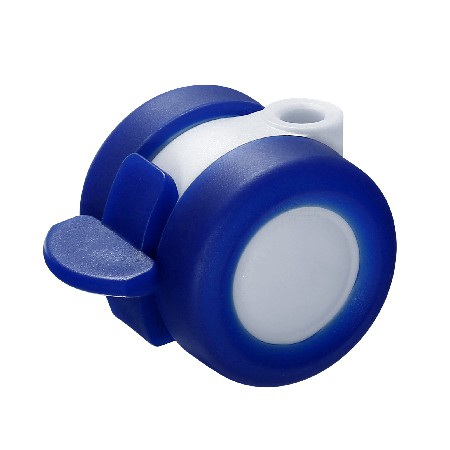

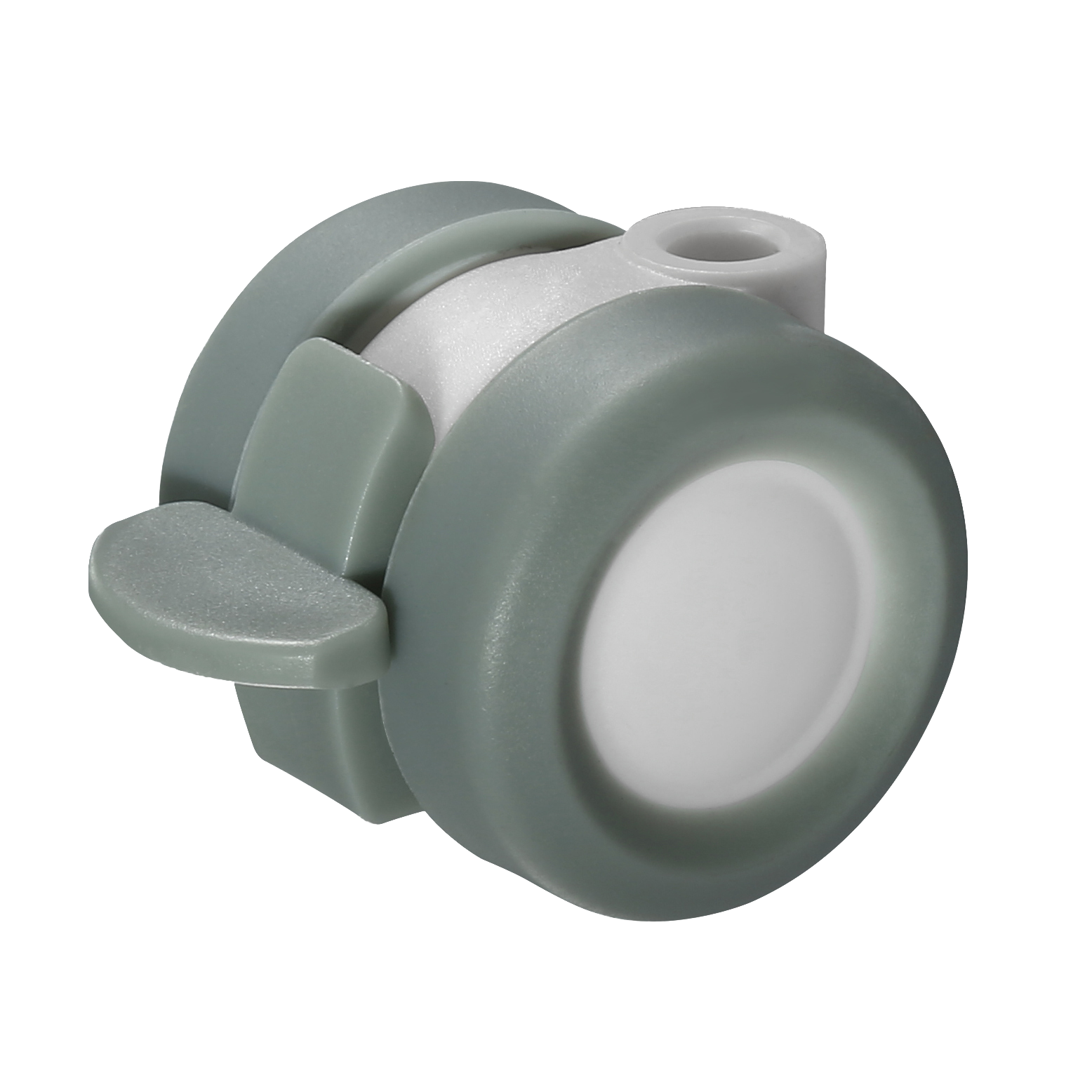

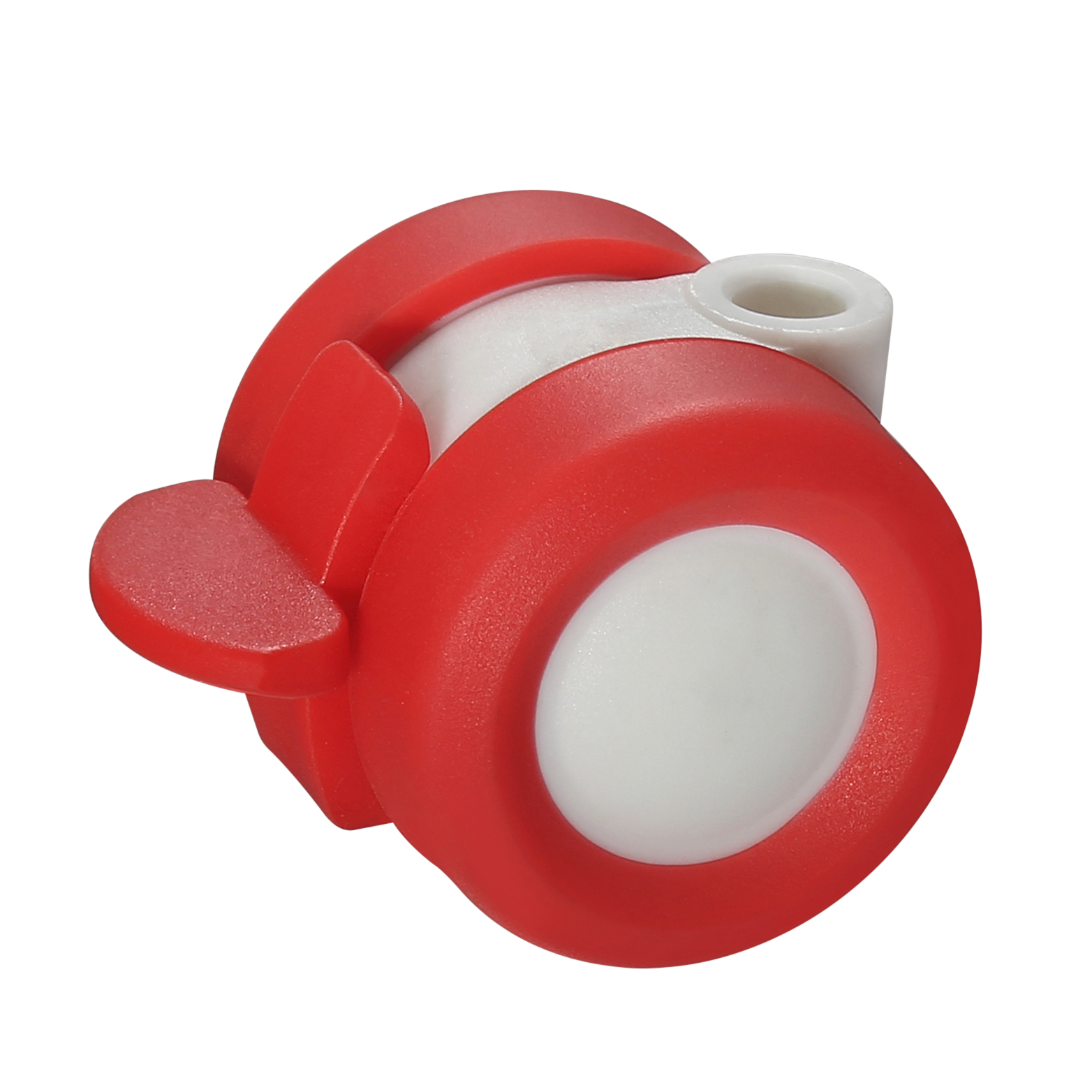

81系列 81 Series
2021-08-19 514

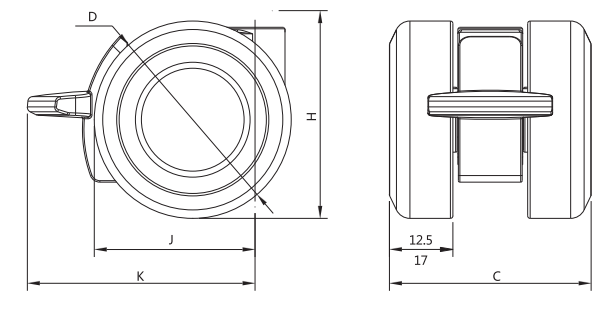

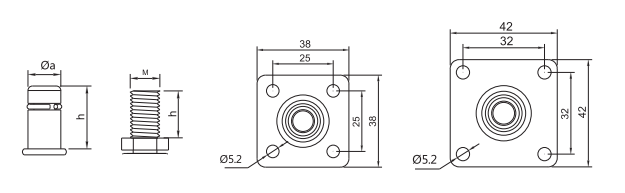

型号 Model | 轮径 Wheel diameter | 承重 Lood-capaciy | 安装高度 Installation height | 轮子转动半径 Radius of gyration | 最大转动半径 Maximum radius of gyration | 丝杆规格 Threaded stem size | 插杆规格 Inserted rod | 轮宽 whell width | 轮轴 Whell axle |
| 81-CU1-043X39 | 39 | 15 | 47 | 32 | 40.5 | 滑动轴 Plain bearing | |||
| 81-CU2-043X39 | 43.5 | M6/M8x15 | |||||||
| 81-CU5-043X39 | Φ8x19 | ||||||||
| 81-CU1E-043X39 | 47 | 45 | |||||||
| 81-CU2E-043X39 | 43.5 | M10x15 | |||||||
| 81-CU5E-043X39 | Φ8x19 | ||||||||
| 81-CU1-043X65 | 65 | 25 | 70 | 47 | 53 | ||||
| 81-CU2-043X65 | 65 | M8/M10x15 | |||||||
| 81-CU5-043X65 | Φ11x22 | ||||||||
| 81-CU1E-043X65 | 70 | 63.5 | |||||||
| 81-CU2E-043X65 | 65 | M8/M10x15 | |||||||
| 81-CU5E-043X65 | Φ11x22 |
